Product name: 2020 New Handheld 16 Bands Cell Phone Signal Jammer Hidden Antenna Blocking 4G Wi-Fi5G RF Signal Jammer ,12Watt Jamming up to20m

Product Features

Product No.: NT-CJP16

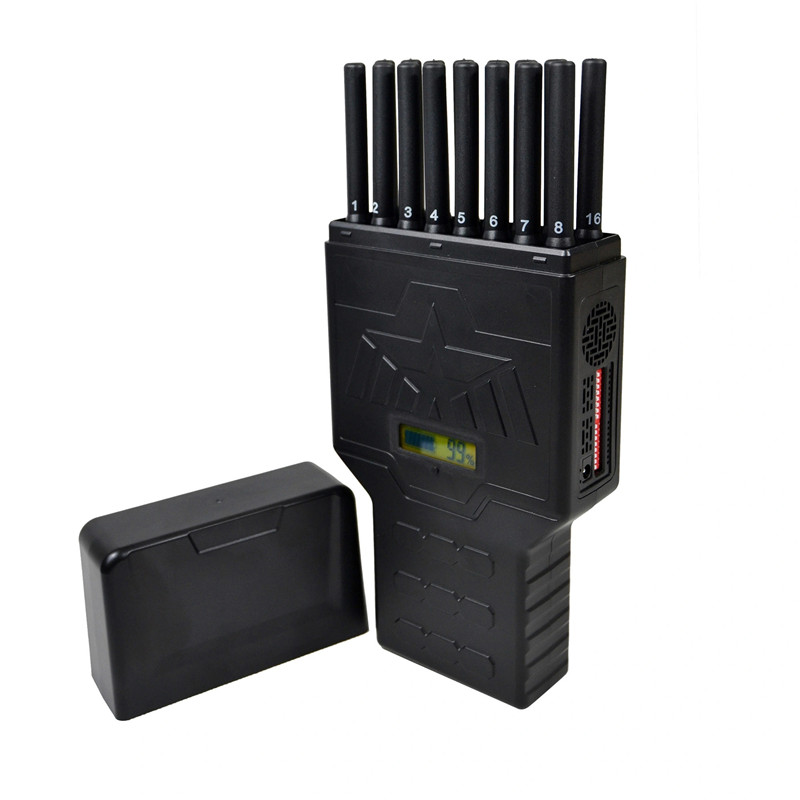

Handheld 16 Bands Cell Phone Signal Jammer Hidden Antenna Blocking 4G Wi-Fi5G RF Signal Jammer ,12Watt Jamming up to20m
The latest hiddenantenna handheld design 16bands all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals
12watt high output power, Jamming range 2 to 20 meters (at-75dBm, depends on signal strength in given area)
Two sets different length antennas used in hidden or have better jamming effect

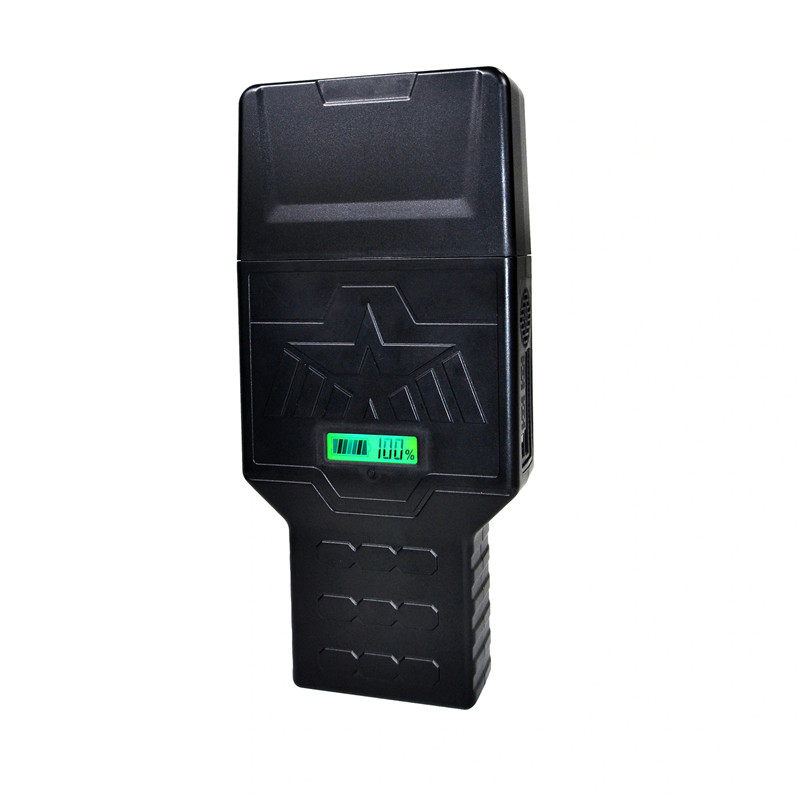

Battery capacity LCD display (Capacity percentage, working Voltage/Current
ABS Shell with good cooling system with cooling fans inside and bigger hot sink,temperature lower than 50ºC

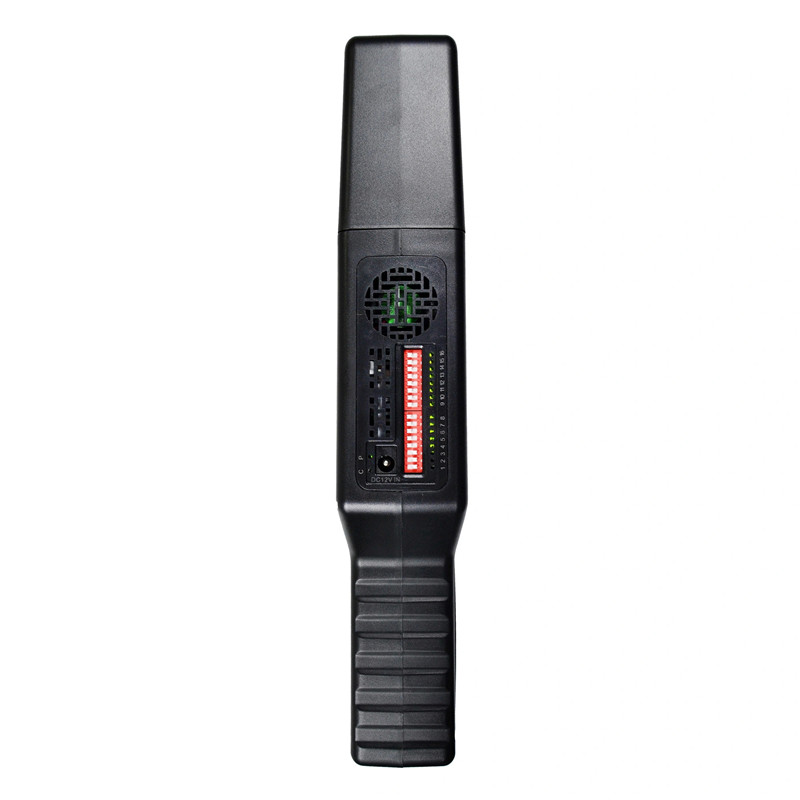

With DIP switch, can turn on/off any signal band without affect other bands
With car charger, 12V DC/AC power supply is also available
With built-in bigger battery, can work more than (2.0+ hours) 120 minutes, Easily repeated charging
OEM customized service:
Customized for special frequency band , Wi-Fi5G,Wireless Camera 1.2GHzetc
Silkscreen OEM service can be offered

Jam Signal Type:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5 +UHF/VHF Walkie-Talkie+LOJACK+RC433 315 868

Key technical specifications:   Product No.: NT-CJP16
ChannelOutput portFrequency rangeAverage out-putting power
Band 1VHF/LOJACK135-175MHz0.75W
Band 24G700700-805 or 790-862MHz0.75W
Band 3PCS1900 or GPSL3L41900-1990 or 1370-1390MHz0.75W
Band 43G2110-2170MHZ0.75W
Band 5WIFI5.2G5100-5700MHz0.75W
Band 6GPSL2L51170-1280MHz0.75W
Band 7CDMA/868850-894MHz0.75W
Band 84G2600 or 4G23002500-2690 or 2300-2400MHZ0.75W
Band 9RC315315MHz0.75W
Band 10RC433433MHz0.75W
Band 11UHF400-470MHz0.75W
Band 12GSM925-960MHz0.75W
Band 13GPSL11570-1580MHz0.75W
Band 14WIFI2.4G2400-2500MHz0.75W
Band 15DCS1805-1900MHz0.75W
Band 16WIFI5.8G5700-5900MHz0.75W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)  Car Charger: DC12V IN
Dimensions: (length ,width, height) 280x130x46mm (include hidden antenna)
Length of antenna :166mm   Gain:2.0dbi
Packing size:330*250*80mm        Net weight: 1.5kg               Gross weight: 2.0kg
Total power: 12W
Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours
Warranty: one year from delivery date

Output Power:Total 12W,0.75W each band(add antennas gain more than 16Watt)
Jam Radius:2-20meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in3x cooling fan
Working Time:Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours
Product Size:280x130x46mm(with hidden omni Antenna)
Product Weight: appr.2.0kg

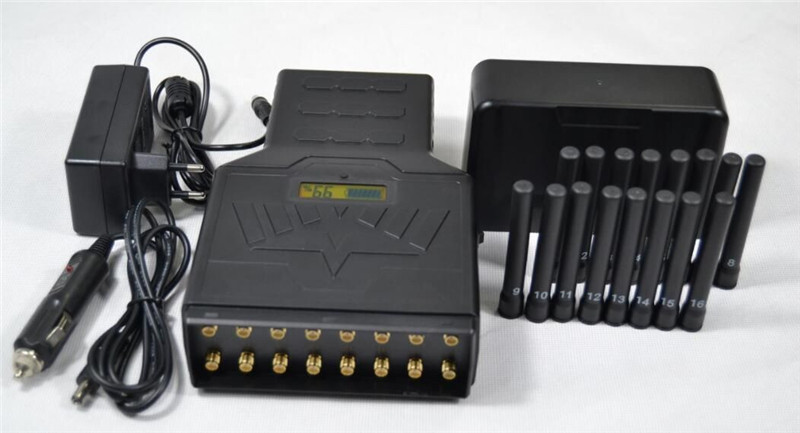

Package Contents:Jammer Host x 1,AC Charger x1, omniantenna x16,Car Charger x1,External high gain antenna x16(option)

It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
