Product name: 2020 New Portable WiFi 2.4G 5.8G GPS Signal Drone Jammer up to 500 Meters
Details:

Product No. NT-DJ04

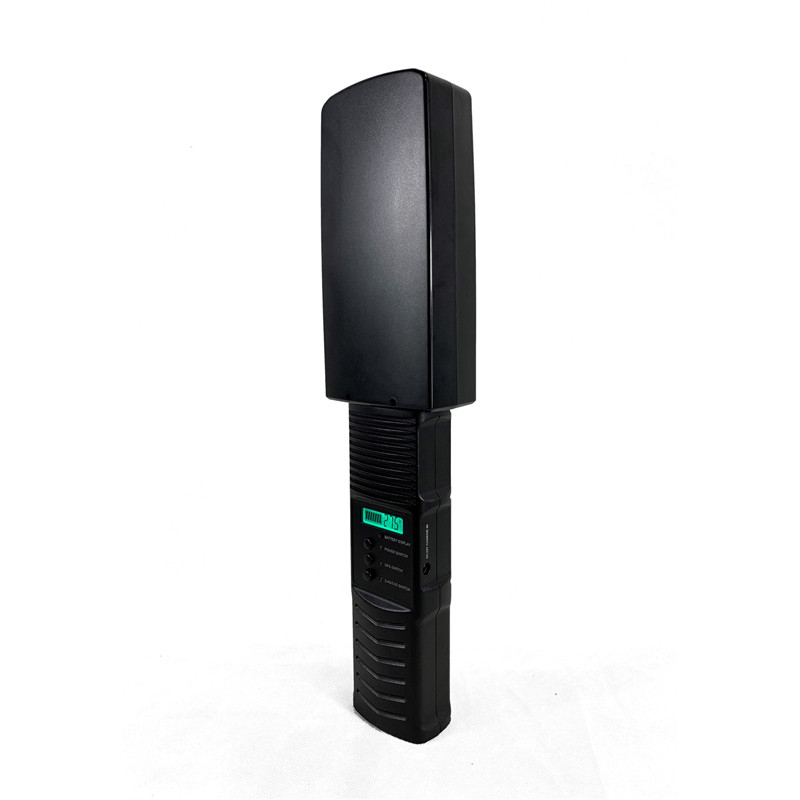

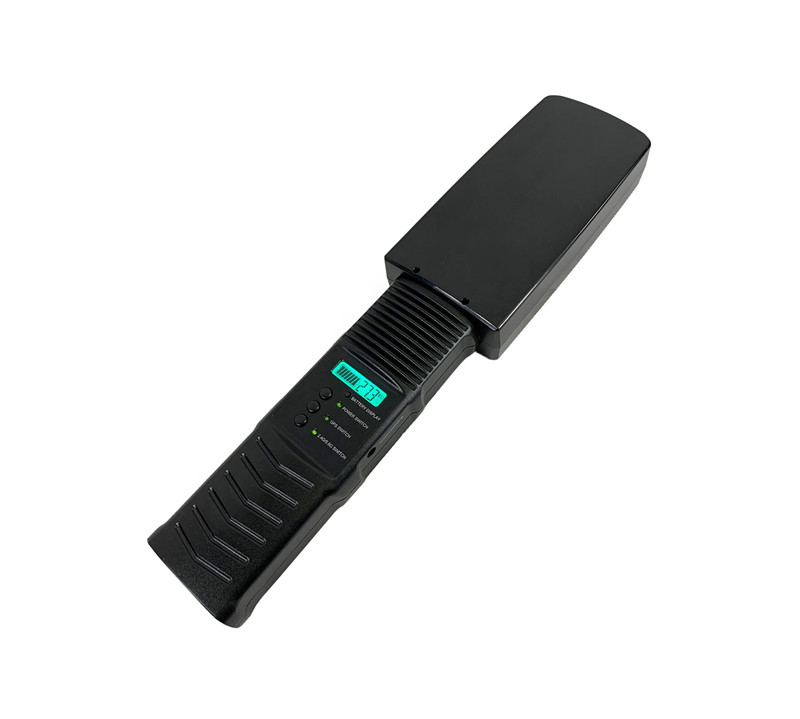

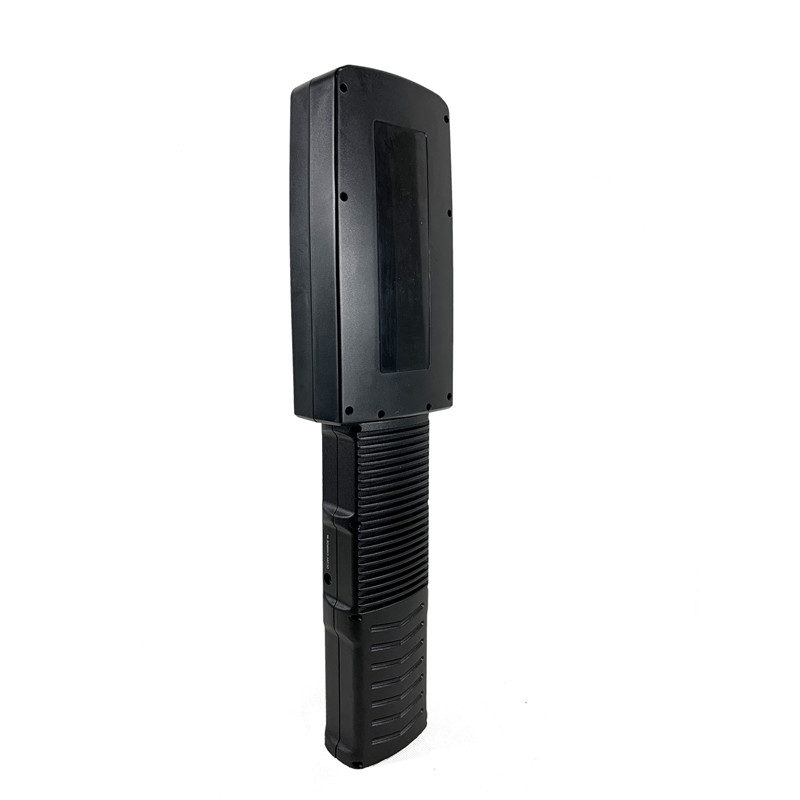

Handheld High Power Drone Signal Jammer With All-in-one Directional Antenna Block up to 500m
Model:

Color: Black

Basic Specifications
Jam Signal Type:Drones RC2.4G/5.8GHz/GPS GLONASS L1 Signals
Output Power:Total 20W,5-10W each band
Jam Radius:100-500 meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator
Working Time:Build-in battery: 24V 4Ah  Working Time:1.5Hours
Product Size:450*105*60mm
Product Weight: appr.1.5kg

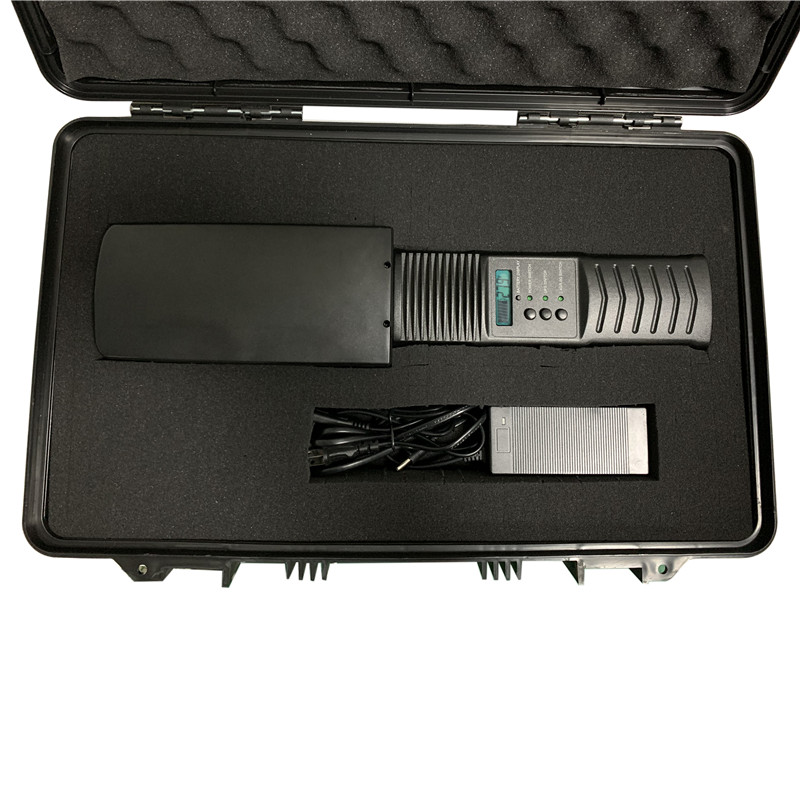

Package Contents:Jammer Host x 1, Battery Charger x1

Product Description
The latest mini handheld all-in-one drone signal jammer with directional antennas for Cover 100% Drones UAVs,Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...

Light weight portable, build-in high gain 10dbi directional antenna ,Jamming distance 100~500 Meters,Built-in Battery continue working 1.5Hour.

Advantage

All in one handheld design, Mini size and light weight
Output power total 20w, Build-in 3-In-One High gain 10dbi directional antenna, shielding 100-500m,Still depends on the distance of drone and remote control.
Each unit can jam up to 3 frequency bands simultaneously, each frequency band is separate and with power switch to ON or Off, LED indicator lights display power supply
100% safe VSWR over protection for each modular
Built-in Battery, Operating Time around 60 Minutes,
Battery Power and charger status & working Current display via LED screen.

OEM Customized Service
Silkscreen OEM service can be offered.

Application
1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;

2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.

Key specifications:
Channel Output PortFrequency rangeAverage out-putting power
1RC2.4G2400-2500MHz40dbm / 10W
2RC5.8G5725-5850MHz37dbm / 5W
3GPSL1 and Glonass L11560-1620MHz37dbm / 5W
OPTIONGPSL2+L51170-1280MHz37dbm / 5W
RC 868/912868-916MHz40dbm / 10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC24V)
Build-in battery: 24V 4Ah     Working Time:1.5Hours
Dimension: (length, width, height) 450*105*60mm
Package Size: 480x 115 x100mm    N.W:1.5kg       G.W:4.0kg
Total Power:20W      Shielding Radius: (100-500 meters@-75dBm.
Still depends on the distance of drone and remote control.
Warranty:  One year from delivery date.
